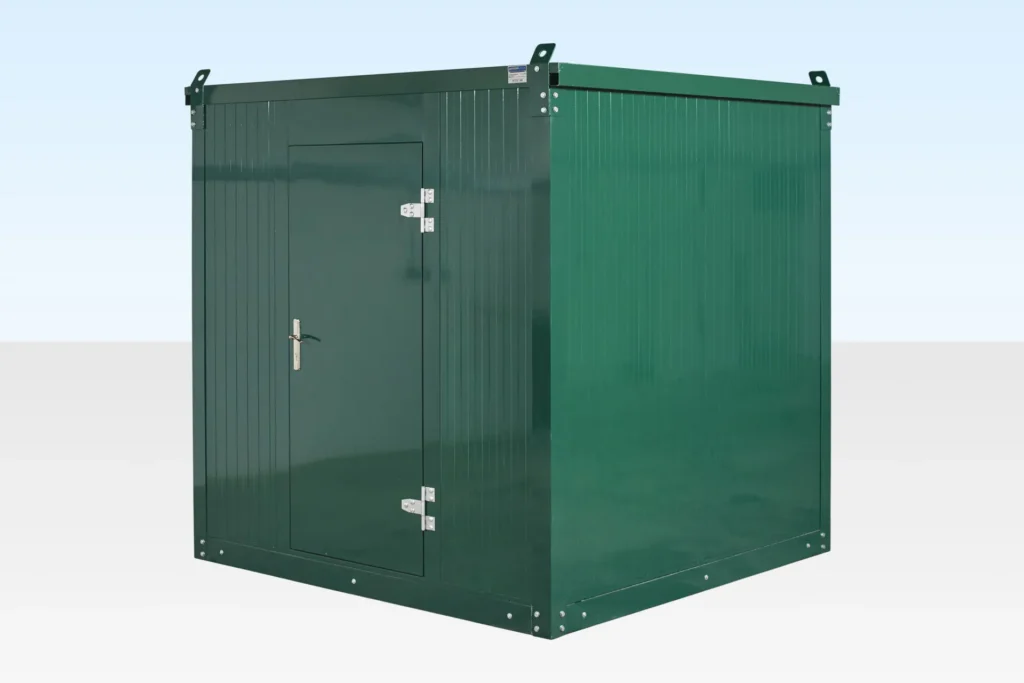

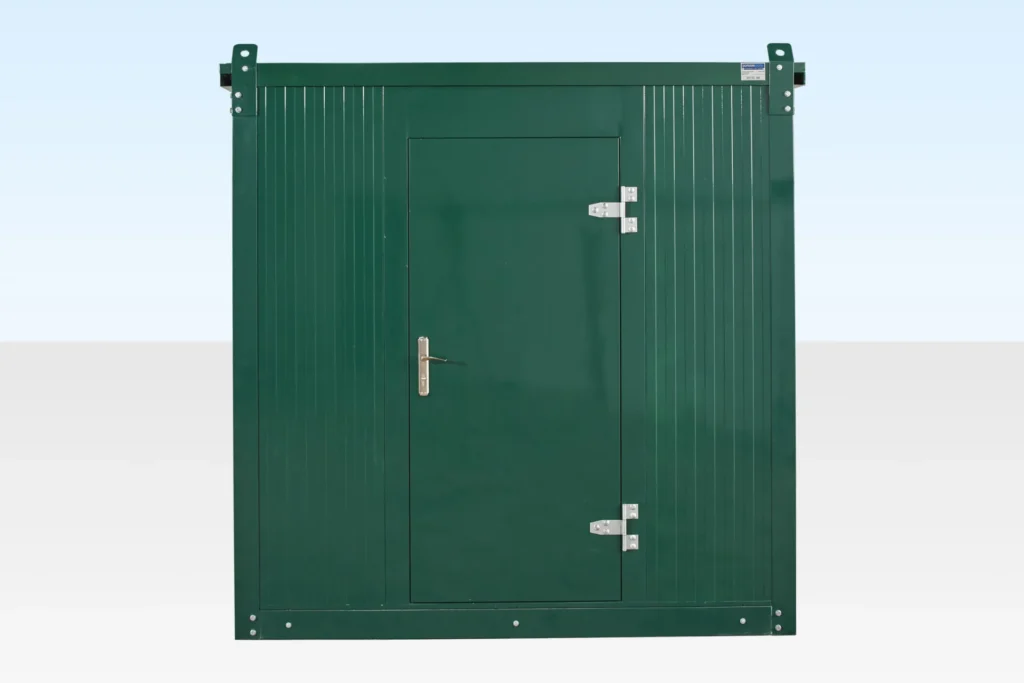

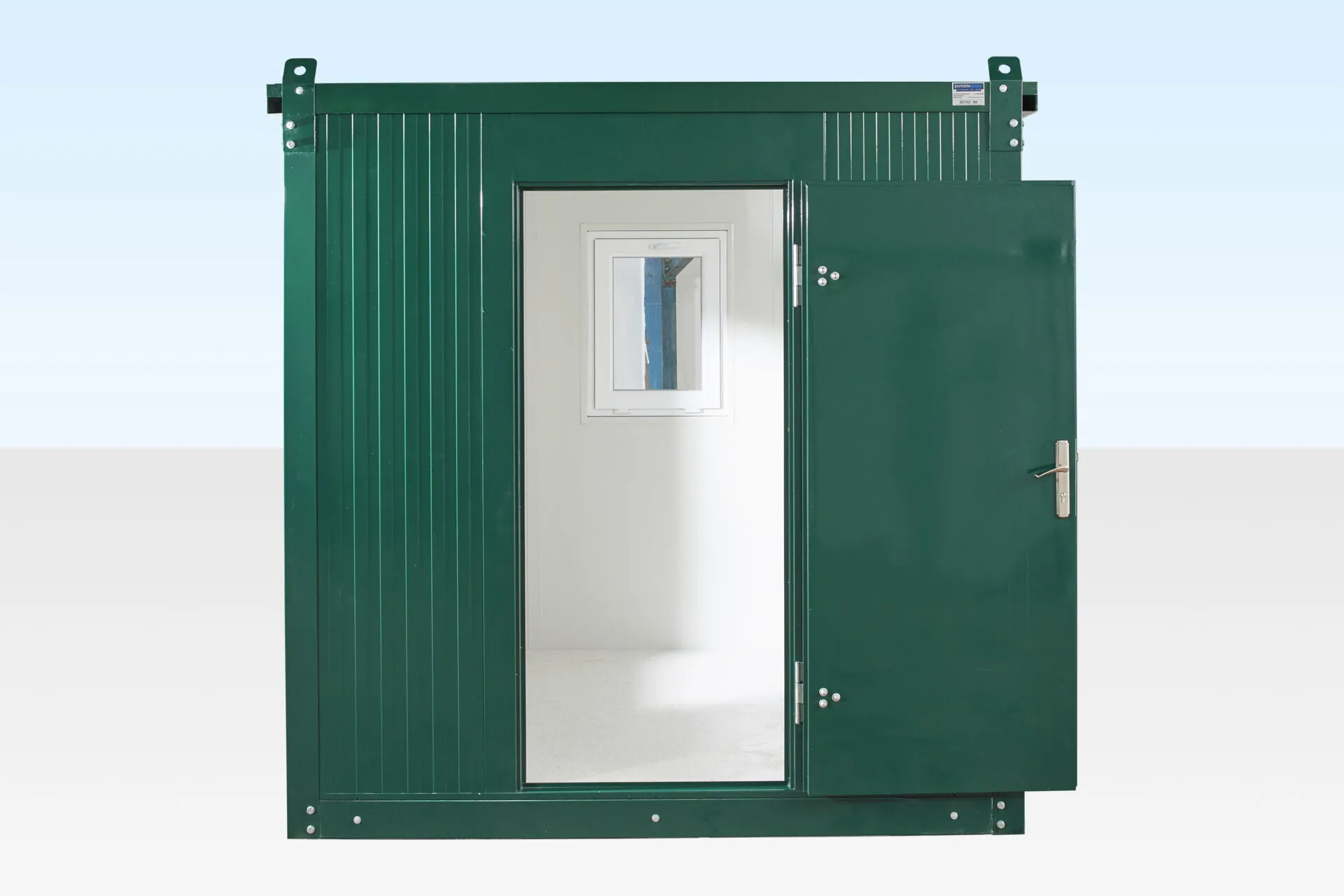

2m Flat Pack Office Cabin – Compact & Collapsible Modular Office
The 2m Flat Pack Office Cabin is the smallest unit in our collapsible flat pack range, perfect for sites with restricted access. Designed for ease of transport and installation, this man-portable cabin arrives flat packed and can be quickly assembled using a socket set in approximately 45 minutes. Its compact size allows deployment in areas where traditional office buildings cannot be installed.
Features
- Fully galvanised steel construction – rust-resistant
- Powder coated moss green exterior and off-white interior
- Guttered roof for effective water management

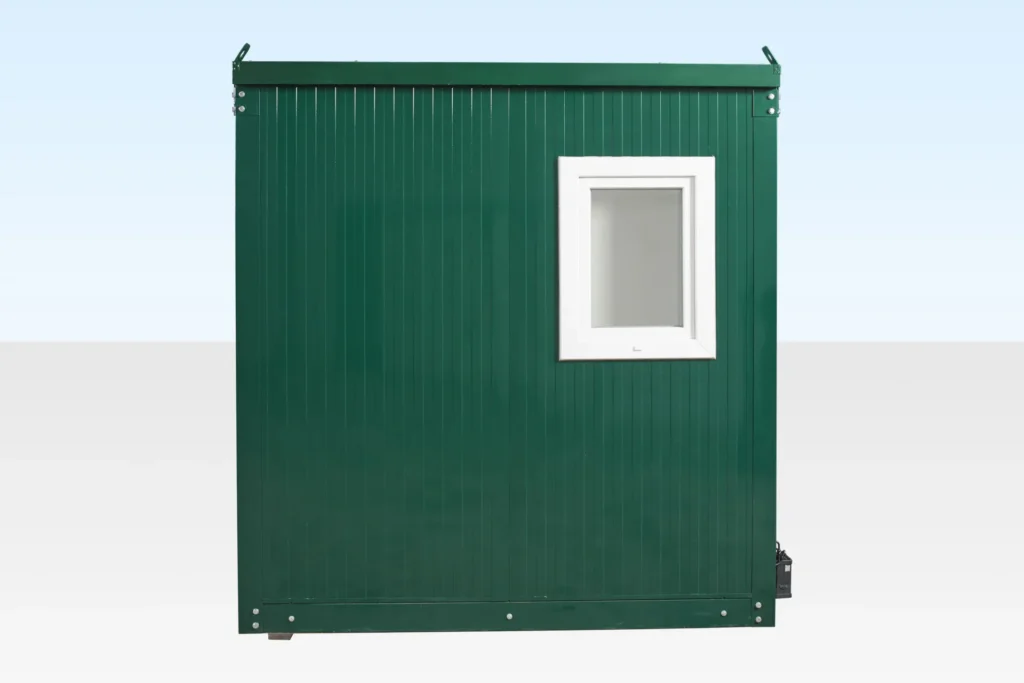

- Two double glazed u-PVC windows for natural light
- Man-portable and easy to assemble
- Can be linked side by side or end to end for additional space
Benefits
- Quick, simple assembly with no specialist tools
- Lightweight yet durable steel structure
- Pleasant, bright interior suitable for surface-mounted electrics
- Expandable layout to meet growing site requirements
- Ideal for temporary offices, remote sites, and restricted access areas
Typical Uses
- Construction site offices
- Temporary administrative offices
- Remote project management posts
- Small-scale site accommodation
PRODUCT SPECIFICATIONS
| External Length (m) | 2.25 |
|---|---|
| External Width (m) | 2.31 |
| External Height (m) | 2.35 |
| Internal Length (m) | 2.13 |
| Internal Width (m) | 2.19 |
| Internal Height (m) | 2.15 |
| Door Width (m) | 0.79 |
| Door Height (m) | 1.97 |
| Height (Flatpacked) (mm) | 450 |
| Length (Flatpacked) (m) | 2.25 |
| Width (Flatpacked) (m) | 2.31 |
| No. of Windows | 2 |
| Weight (Flatpacked) (kg) | 665 |
| Weight Heaviest Part (when Demounted) (kg) | 74 |
| Floor Type | 18mm Marine Plywood |
| Floor Loading | 250kg/m2 evenly distributed |
| Internal Floor Covering | 2mm PVC Linoleum (flash point B1 difficult to burn, smoke density Q1) |
| Internal Wall Covering | 0.60mm galvanised steel electrostatic powder coated in RAL9002 |
| Insulation | 50mm EPS insulation |
| Electrical Requirements. (Amps) | 32amp |
